Multi Tunnel Plastic Film Greenhouse 10x30m Customizable
| Place of Origin | SICHUAN |
|---|---|
| Brand Name | CHOYUEH |
| Model Number | Multi-span Sawtooth Greenhouse |
| Minimum Order Quantity | Moq：100square meter |
| Price | Negotiable |
| Delivery Time | 15-20 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000square meter per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Easy Installed | Cover Material | Film |
|---|---|---|---|
| Product Name | Multi-span Film Greenhouse | Size | 10X30m,customizable |
| Application | Vegetable Fruits Flowers,etc. | Material | Hot Dipped Galvanized Steel |
| Length | 32m-80m | Width | 6m,8m,9m,10m,12m |
| Covering | Single/Double Layer Pe Film | System | Ventilation System,cooling System,heating System,etc. |
| Warranty | 10-20 Years | ||
| Highlight | Plastic Film Greenhouse 10X30m,plastic film multi tunnel greenhouse,multi tunnel greenhouse 10X30m |
||
Product Description

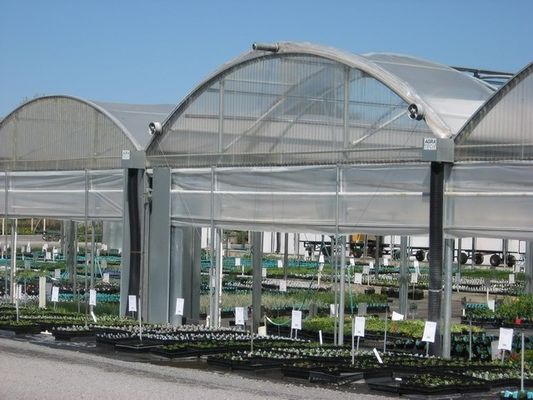

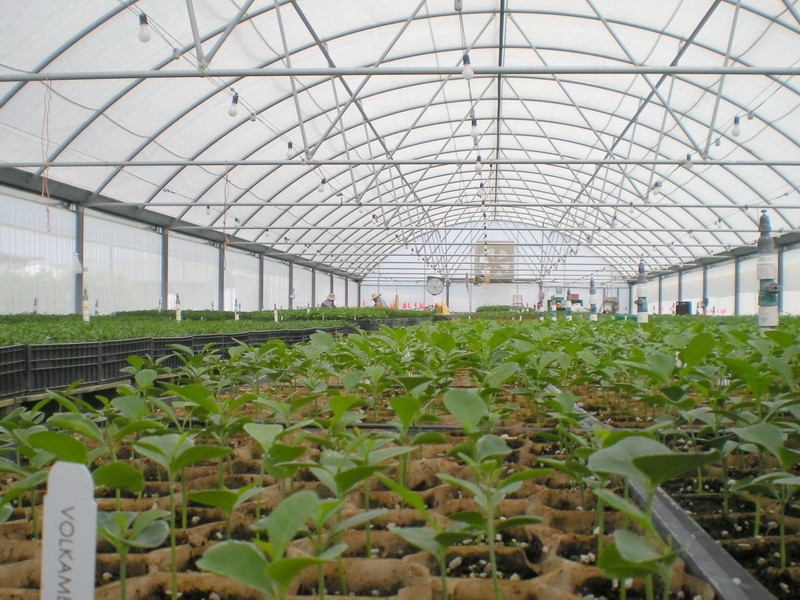

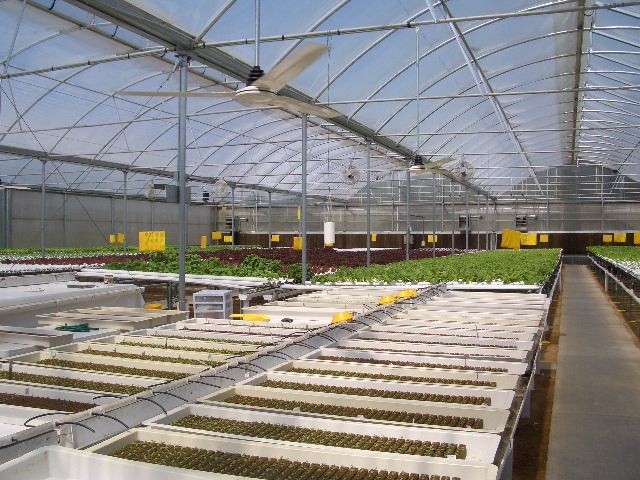

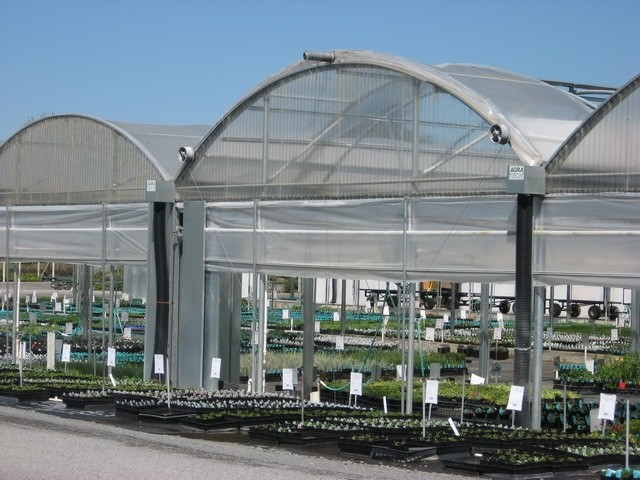

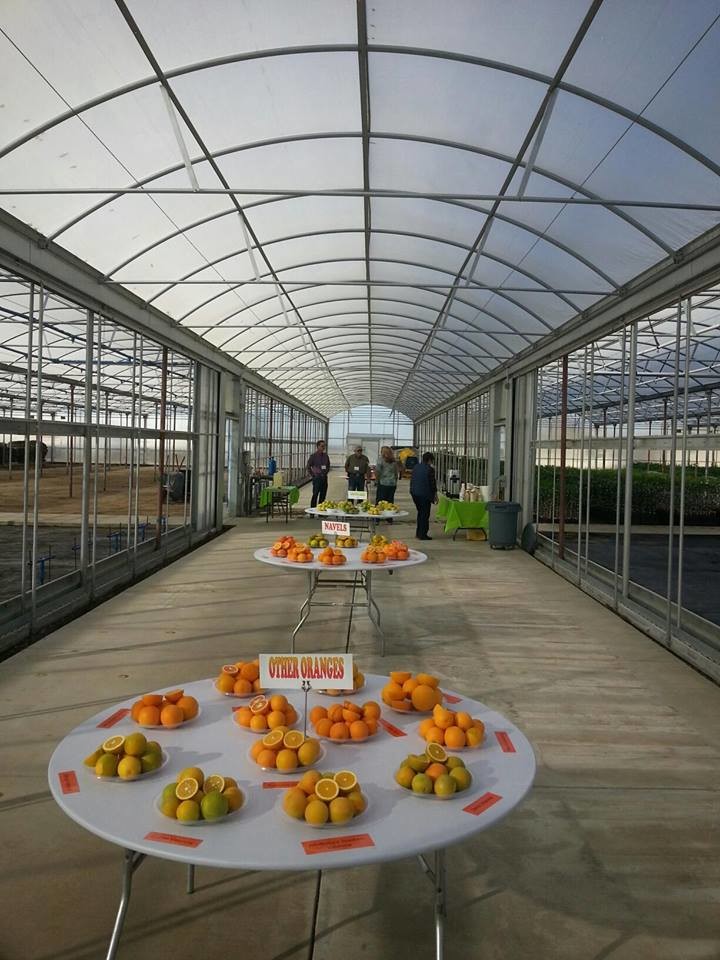

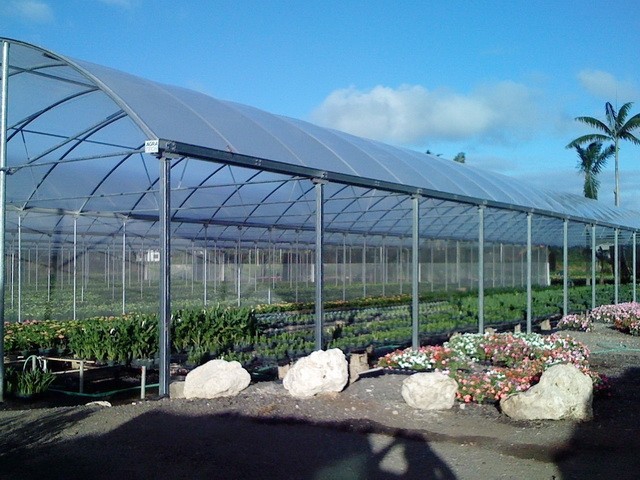

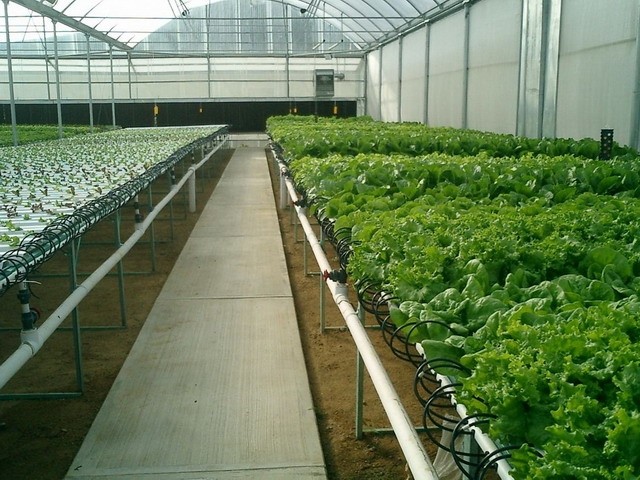

Customizable size Low Cost Tunnel Type PE Multi-span Plastic Film Greenhouse
Type: Film multi-span greenhouse, polycarbonate multi-span greenhouse,Glass greenhouse
Frame structure:
(1)Hot dip galvanized steel Frame
(1)Hot dip galvanized steel Frame
(2) Main post: 150*150mm-100*100mm
(3) Auxiliary post : 120*60mm-100*50mm
(4) Thickness: 1-2.5mm
(5) Truss: 50*50*2.5mm
(6) Zinc coating: average 210g/㎡
(7) Gutter: thickness 2.0-2.75mm, zinc coating 275g/㎡
(3) Auxiliary post : 120*60mm-100*50mm
(4) Thickness: 1-2.5mm
(5) Truss: 50*50*2.5mm
(6) Zinc coating: average 210g/㎡
(7) Gutter: thickness 2.0-2.75mm, zinc coating 275g/㎡
Covering:
(1) PO/PEP/HDPE plastic film single layer film covering / double layers films one layer thickness: 120μm-200μm
(1) PO/PEP/HDPE plastic film single layer film covering / double layers films one layer thickness: 120μm-200μm
(2) Polycarbonate:double/three layers
(3) Tempered glass
Single layer: 4mm/5mm
Double layer 5+6+5 mm
Can be customized according to customer requirements
(3) Tempered glass
Single layer: 4mm/5mm
Double layer 5+6+5 mm
Can be customized according to customer requirements
Film multi-span greenhouse Parameters:
(1) Wind load: 0.55KN/㎡
(1) Wind load: 0.55KN/㎡
(2) Snow load: 0.45KN/㎡
(3) Maximum rainfall: 140mm/h
(4) Planting bearing: 0.2KN /㎡
(3) Maximum rainfall: 140mm/h
(4) Planting bearing: 0.2KN /㎡
