Saw Tooth Type PE Film Greenhouse Width 6m 8m 9m 10m 12m
| Place of Origin | SICHUAN |
|---|---|
| Brand Name | CHOYUEH |
| Model Number | Multi-span Sawtooth Greenhouse |
| Minimum Order Quantity | Moq：100square meter |
| Price | Negotiable |
| Delivery Time | 15-20 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000square meter per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Easy Installed | Cover Material | Film |
|---|---|---|---|
| Product Name | Multi-span Film Greenhouse | Size | 10X30m,customizable |
| Application | Vegetable Fruits Flowers,etc. | Material | Hot Dipped Galvanized Steel |
| Length | 32m-80m | Width | 6m,8m,9m,10m,12m |
| Covering | Single/Double Layer Pe Film | System | Ventilation System,cooling System,heating System,etc. |
| Warranty | 10-20 Years | ||
| Highlight | pe film greenhouse Width 6m,saw tooth type PE film greenhouse,saw tooth type greenhouse Width 8m |
||
Product Description

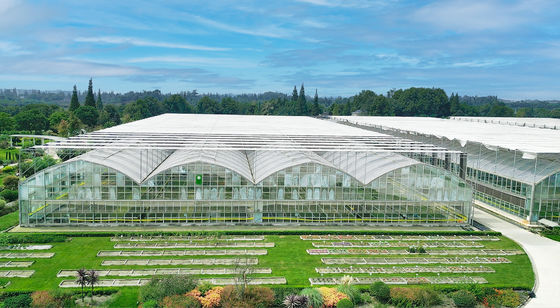

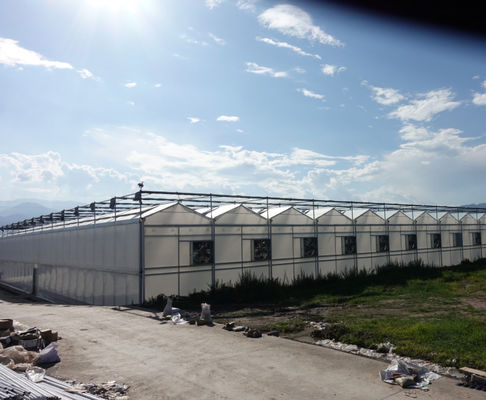

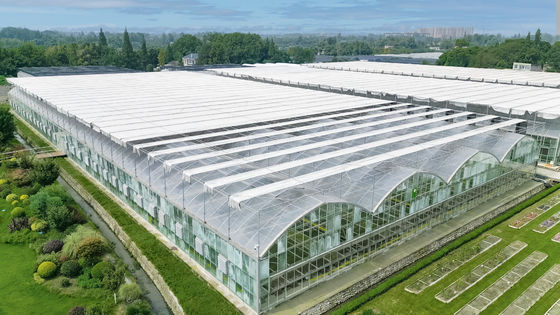

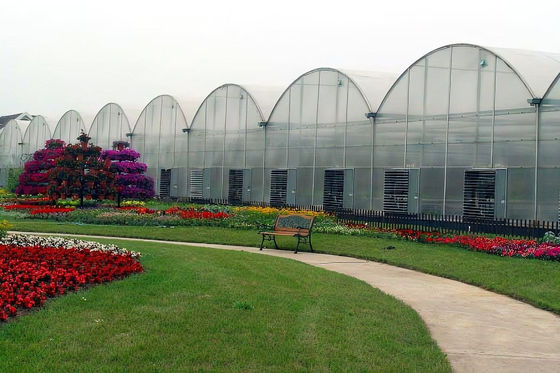

Hot sale multi-span hot galvanized steel pipe structure pe film high sawtooth greenhouse for rose nursery

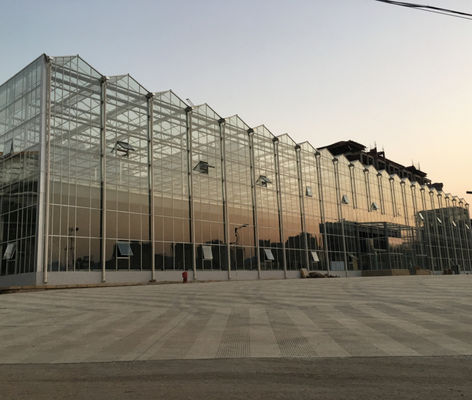

Type: Film multi-span greenhouse, polycarbonate multi-span greenhouse,Glass greenhouse
Frame structure:
(1)Hot dip galvanized steel Frame
(1)Hot dip galvanized steel Frame
(2) Main post: 150*150mm-100*100mm
(3) Auxiliary post : 120*60mm-100*50mm
(4) Thickness: 1-2.5mm
(5) Truss: 50*50*2.5mm
(6) Zinc coating: average 210g/㎡
(7) Gutter: thickness 2.0-2.75mm, zinc coating 275g/㎡
(3) Auxiliary post : 120*60mm-100*50mm
(4) Thickness: 1-2.5mm
(5) Truss: 50*50*2.5mm
(6) Zinc coating: average 210g/㎡
(7) Gutter: thickness 2.0-2.75mm, zinc coating 275g/㎡
Covering:
(1) PO/PEP/HDPE plastic film single layer film covering / double layers films one layer thickness: 120μm-200μm
(1) PO/PEP/HDPE plastic film single layer film covering / double layers films one layer thickness: 120μm-200μm
(2) Polycarbonate:double/three layers
(3) Tempered glass
Single layer: 4mm/5mm
Double layer 5+6+5 mm
Can be customized according to customer requirements
(3) Tempered glass
Single layer: 4mm/5mm
Double layer 5+6+5 mm
Can be customized according to customer requirements
Film multi-span greenhouse Parameters:
(1) Wind load: 0.55KN/㎡
(1) Wind load: 0.55KN/㎡
(2) Snow load: 0.45KN/㎡
(3) Maximum rainfall: 140mm/h
(4) Planting bearing: 0.2KN /㎡
(3) Maximum rainfall: 140mm/h
(4) Planting bearing: 0.2KN /㎡
CHOYUEH is an enterprise specializing in greenhouse technology development, engineering design, production and processing, product sales, installation and construction, and consulting services. It has modern production equipment, professional production technology and first-class production plants, as well as high-quality design, R&D, production and construction personnel. The company has solid R&D strength, advanced design concepts, strong engineering and technical strength, rich construction experience and perfect after-sales service. It designs and constructs vegetable greenhouses, seedling and flower greenhouses, nursery greenhouses, breeding greenhouses, greenhouse factories, ecological restaurants, etc. Has rich experience.
The company's main business includes: Venlo-type glass greenhouses, logistics seedbeds, single-span film greenhouses, multi-span film greenhouses, multi-span solar panel greenhouses, and solar greenhouses. The company provides facilities and equipment including heating facilities and cooling equipment, internal/external shading equipment, fixed/mobile sprinkler irrigation systems, mobile seedbeds, flower facilities, water and fertilizer integration and other facilities.
The company's main business includes: Venlo-type glass greenhouses, logistics seedbeds, single-span film greenhouses, multi-span film greenhouses, multi-span solar panel greenhouses, and solar greenhouses. The company provides facilities and equipment including heating facilities and cooling equipment, internal/external shading equipment, fixed/mobile sprinkler irrigation systems, mobile seedbeds, flower facilities, water and fertilizer integration and other facilities.
