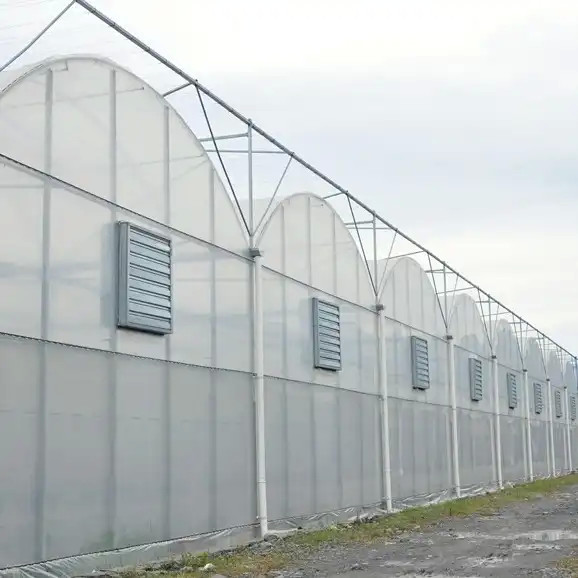

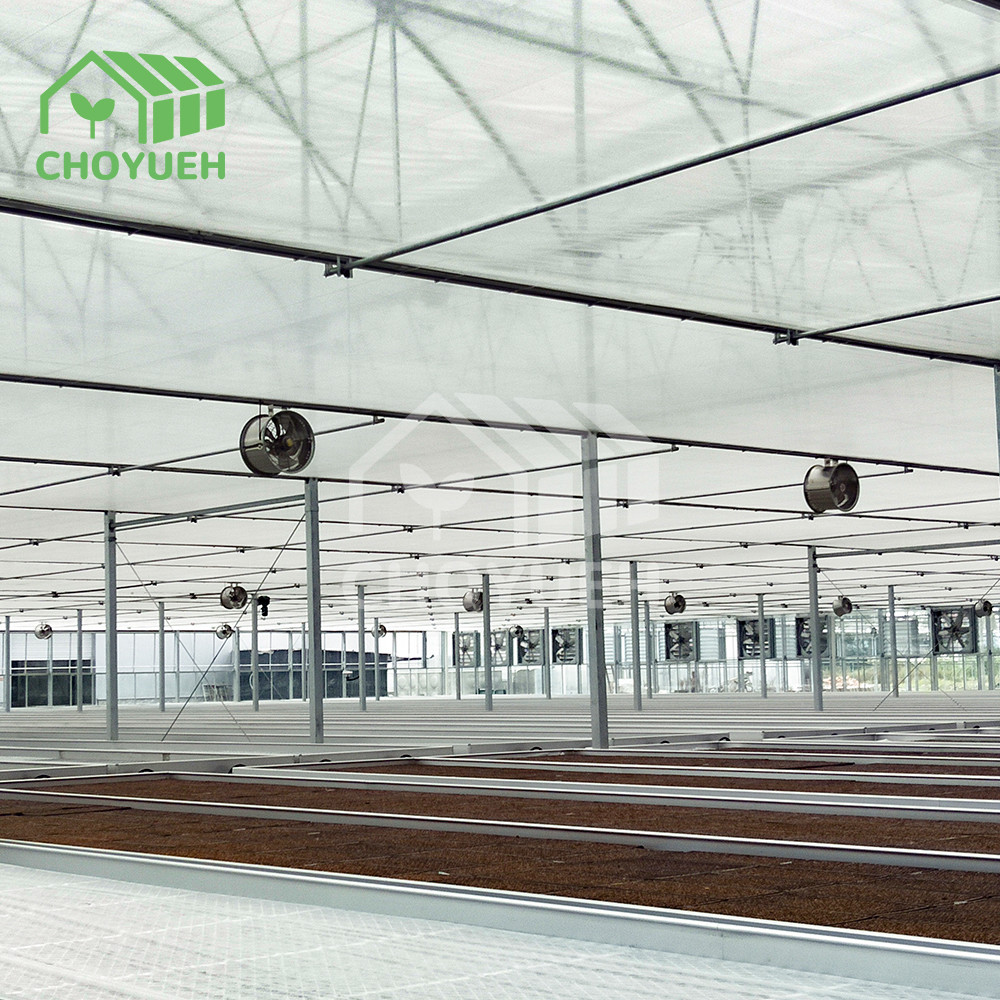

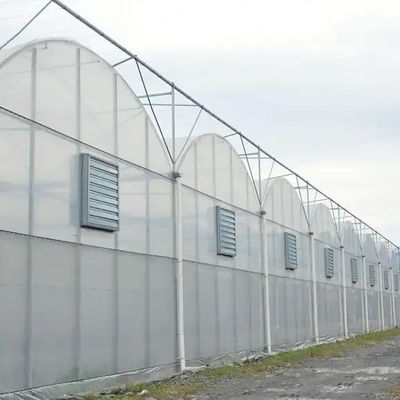

Commercial Plastic Film Greenhouse Vegetable Farming With Ventilation System

Place of Origin SICHUAN
Brand Name CHOYUEH
Model Number Multi-span Film Greenhouse
Minimum Order Quantity Moq:100square meter
Price Negotiable
Delivery Time 15-20 Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000square meter per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Easy Installed Cover Material Film
Product Name Multi-span Film Greenhouse Size 10X30m,customizable
Application Vegetable Fruits Flowers,etc. Material Hot Dipped Galvanized Steel
Length 32m-80m Width 6m,8m,9m,10m,12m
Covering Single/Double Layer Pe Film System Ventilation System,cooling System,heating System,etc.
Warranty 10-20 Years
Highlight

commercial greenhouse With Ventilation System

,

Commercial Plastic Film Greenhouse Vegetable Farming

,

Plastic Film Greenhouse With Ventilation System

Leave a Message
Product Description

Commercial Multi Span PE Plastic film Greenhouse for growing Vegetable Fruits FlowersCommercial Plastic Film Greenhouse Vegetable Farming With Ventilation System 0Commercial Plastic Film Greenhouse Vegetable Farming With Ventilation System 1Commercial Plastic Film Greenhouse Vegetable Farming With Ventilation System 2Commercial Plastic Film Greenhouse Vegetable Farming With Ventilation System 3Commercial Plastic Film Greenhouse Vegetable Farming With Ventilation System 4Commercial Plastic Film Greenhouse Vegetable Farming With Ventilation System 5Commercial Plastic Film Greenhouse Vegetable Farming With Ventilation System 6Commercial Plastic Film Greenhouse Vegetable Farming With Ventilation System 7Commercial Plastic Film Greenhouse Vegetable Farming With Ventilation System 8Commercial Plastic Film Greenhouse Vegetable Farming With Ventilation System 9Commercial Plastic Film Greenhouse Vegetable Farming With Ventilation System 10

Type: Film multi-span greenhouse, polycarbonate multi-span greenhouse,Glass greenhouse
Frame structure:
(1)Hot dip galvanized steel Frame
(2) Main post: 150*150mm-100*100mm
(3) Auxiliary post : 120*60mm-100*50mm
(4) Thickness: 1-2.5mm
(5) Truss: 50*50*2.5mm
(6) Zinc coating: average 210g/㎡
(7) Gutter: thickness 2.0-2.75mm, zinc coating 275g/㎡
Covering:
(1) PO/PEP/HDPE plastic film single layer film covering / double layers films one layer thickness: 120μm-200μm
(2) Polycarbonate:double/three layers
(3) Tempered glass
Single layer: 4mm/5mm
Double layer 5+6+5 mm

Can be customized according to customer requirements
Film multi-span greenhouse Parameters:
(1) Wind load: 0.55KN/㎡
(2) Snow load: 0.45KN/㎡
(3) Maximum rainfall: 140mm/h
(4) Planting bearing: 0.2KN /㎡
